New features in dev - arch glass and new exit portals

Post by OnoSendai » Fri Nov 29, 2013 1:09 am

Hi All,
Now that 3.6 is out, it's time to show some of the new stuff we have been working on :)

The bread and butter of most Indigo users is arch-viz, and a lot of arch-viz consists of sunlight and glass. So we have two new features that should make for some massive improvements for such scenes.

The first is arch glass. Arch glass will be an option for specular materials. It uses some trickery to approximate the flow of light through thin glass. Although it is an approximation, it should be a highly accurate one, and should result in much faster rendering convergence.
Indigo arch glass correctly handles multiple reflections, as well as absorption in the glass. It's as easy to use as ticking a checkbox on the specular material settings.

The second new feature is a change to the way exit portals work - you will now be able to see through them, e.g. you can still use them in a window even if the outside of a room should be visible as well. You can even use them for exterior shots looking into a building.

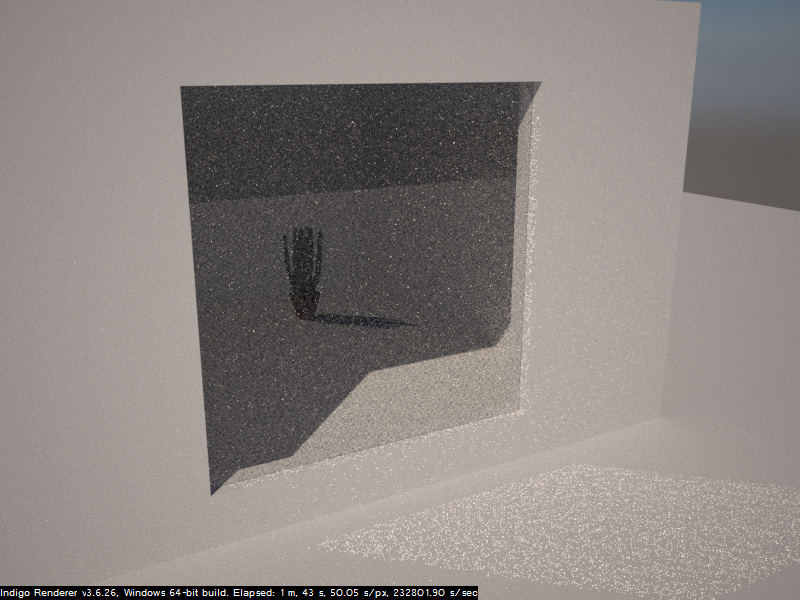

In this test, we are looking into a room with glass on the window. The cactus is a reflection in the window.

Old: (50 samples / pixel)
outside with glass accel.png
New render with arch glass and new exit portals: (50 samples / pixel)
outside with arch glass and new exit portals.png

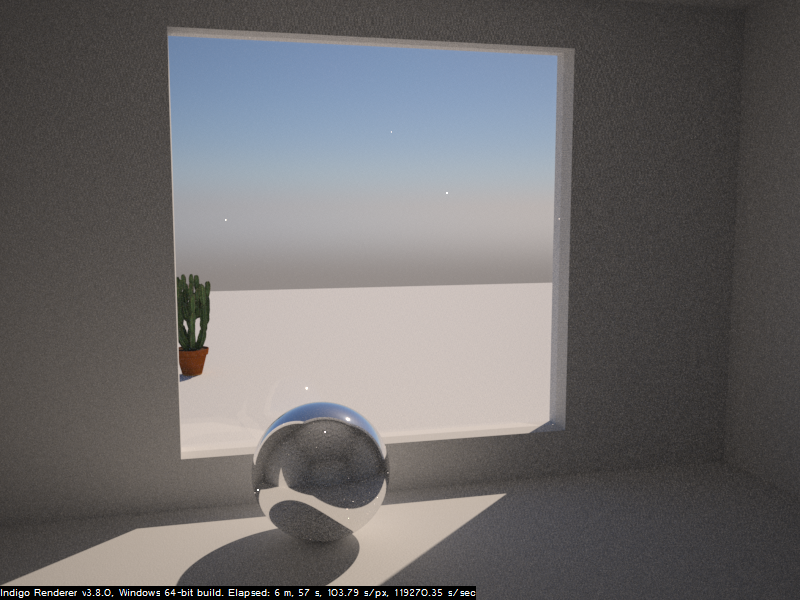

This test uses an exit portal on the window.
As you can see, the outside is now visible. Also the reflection of the sunlight on the chrome sphere cleans up much faster.


Old:
sphere portal test old exit portal 100 spp.png
New exit portals with arch glass:
sphere portal test NEW exit portal 100 spp.png

User avatar
zeitmeister
2nd Place 100
Posts: 1996
Joined: Tue Apr 22, 2008 4:11 am
Location: Limburg/Lahn, Germany
Contact:

Re: New features in dev - arch glass and new exit portals

Post by zeitmeister » Fri Nov 29, 2013 2:34 am

Wow, finally!!!
Cheers, David



DAVIDGUDELIUS // 3D.PORTFOLIO
·
Indigo 4.2.23 | Indigo for C4D 4.2.22 | C4D R14.042 | Mac OS X 10.13.6 | Windows 10 Professional x64

User avatar
PureSpider
Posts: 1459
Joined: Tue Apr 08, 2008 9:37 am
Location: Karlsruhe, BW, Germany
Contact:

Re: New features in dev - arch glass and new exit portals

Post by PureSpider » Fri Nov 29, 2013 2:36 am

What is this new exit portal sorcery?!
BURN THE CONJURER FOR HE DOES THE IMPOSSIBLE! :shock:

On a more serious note, I am looking forward to renewing my license! 8)

User avatar
wlf_alex
Posts: 99
Joined: Tue Aug 28, 2012 9:26 pm
Location: Russia-Moscow, Spain-Alicante
Contact:

Re: New features in dev - arch glass and new exit portals

Post by wlf_alex » Fri Nov 29, 2013 4:53 am

Perfect ! We really need it !
ArchiCAD 14, Cinema 4D r13, IndigoRender, VrayforC4D

User avatar
Godzilla
Indigo 100
Posts: 985
Joined: Sat Jun 06, 2009 11:33 am

Re: New features in dev - arch glass and new exit portals

Post by Godzilla » Fri Nov 29, 2013 5:01 am

Great stuff :)

I'm a little confused by the exit portal- If it's *on* the window, how is the rest of the scene illuminated?
samlavoie.xyz

Prof4D
Posts: 112
Joined: Mon Aug 03, 2009 9:04 am

Re: New features in dev - arch glass and new exit portals

Post by Prof4D » Fri Nov 29, 2013 5:33 am

About my god!
This will work through plagin Cinema+Indigo?
And what about reflections through portal will is seen that for window?

User avatar
CTZn
Posts: 7240
Joined: Thu Nov 16, 2006 4:34 pm
Location: Paris, France

Re: New features in dev - arch glass and new exit portals

Post by CTZn » Fri Nov 29, 2013 6:34 am

What rendering modes where used for the tests ?
obsolete asset

User avatar
OnoSendai
Developer
Posts: 6172
Joined: Sat May 20, 2006 6:16 pm
Location: Newcastle upon Tyne, UK
Contact:

Re: New features in dev - arch glass and new exit portals

Post by OnoSendai » Fri Nov 29, 2013 8:32 am

CTZn wrote:What rendering modes where used for the tests ?
All bidir. Glass accel for first image.

User avatar
Pibuz
1st Place 100
Posts: 2643
Joined: Tue Dec 11, 2007 7:58 am
Location: Padua, Italy
3D Software: SketchUp

Re: New features in dev - arch glass and new exit portals

Post by Pibuz » Fri Nov 29, 2013 10:35 am

The archviz here seems intrigued by the new stuff and approves. :mrgreen:

User avatar
Oscar J
1st Place Winner
Posts: 2167
Joined: Sat Mar 31, 2012 3:47 am
Location: Gothenburg, Sweden
3D Software: Blender

Re: New features in dev - arch glass and new exit portals

Post by Oscar J » Fri Nov 29, 2013 12:09 pm

Can it only be used for flat glass?

User avatar
OnoSendai
Developer
Posts: 6172
Joined: Sat May 20, 2006 6:16 pm
Location: Newcastle upon Tyne, UK
Contact:

Re: New features in dev - arch glass and new exit portals

Post by OnoSendai » Fri Nov 29, 2013 12:12 pm

Oscar J wrote:Can it only be used for flat glass?
Should work for slightly curved glass as well, like car glass :)
It just won't work for highly curved and complicated glass like headlights, drinking glasses etc..

User avatar
OnoSendai
Developer
Posts: 6172
Joined: Sat May 20, 2006 6:16 pm
Location: Newcastle upon Tyne, UK
Contact:

Re: New features in dev - arch glass and new exit portals

Post by OnoSendai » Fri Nov 29, 2013 12:13 pm

Godzilla wrote:Great stuff :)

I'm a little confused by the exit portal- If it's *on* the window, how is the rest of the scene illuminated?
It's more of a sampling hint than an exit portal in that respect.

User avatar
Godzilla
Indigo 100
Posts: 985
Joined: Sat Jun 06, 2009 11:33 am

Re: New features in dev - arch glass and new exit portals

Post by Godzilla » Fri Nov 29, 2013 6:52 pm

Ah I see.

A feature suggestion (I thought I'd say something here since it's not really thread-worthy):

If there were a Hex value field in addition to HSV and RGB in the Indigo color picker, it would be very helpful.
samlavoie.xyz

User avatar
Pibuz
1st Place 100
Posts: 2643
Joined: Tue Dec 11, 2007 7:58 am
Location: Padua, Italy
3D Software: SketchUp

Re: New features in dev - arch glass and new exit portals

Post by Pibuz » Fri Nov 29, 2013 8:29 pm

..don't know if it's possible (but we're talking about new impossible things, so... :lol: ) but it would be nice to have invisible objects not to be rendered in reflections too.. :!:

User avatar
PureSpider
Posts: 1459
Joined: Tue Apr 08, 2008 9:37 am
Location: Karlsruhe, BW, Germany
Contact:

Re: New features in dev - arch glass and new exit portals

Post by PureSpider » Fri Nov 29, 2013 10:17 pm

I know a very easy way: delete the objects in question ;)

The benefit of how it is now is that you can cut the back wall of a room (for example) and still have it rendered in reflective surfaces inside of the room.
What benefit would making the object completely invisible have over just not having it in the scene at all?
