Opening .IES

[_sleipniir]

Hi, im searching for some way for open .ies in the Indigo 3.2.14 but i dont see anyone button or option to open .IES files. i search in everythyng, in the manual dont explain in details, show to you open the emitter properties, but i cant find.

thanks

[CTZn]

There is currently no such option in the Indigo user interface, that must be done into your 3D application.

[_sleipniir]

There is currently no such option in the Indigo user interface, that must be done into your 3D application.

but Blender have only sun and hemi and dont import .IES

[FakeShamus]

Just add a 1 poly (triangle) mesh and assign it a material. when you edit the material settings you can add emission to it, making it a light, and it's in the emission settings that you can select and assign your IES profile.
the normal direction of your mesh determines what direction the IES will point.

[CTZn]

because there is this specificity with emission using IES profiles, that each triangle of the emitting mesh will emit the profile on its own.

You do as FakeShamus says

[_sleipniir]

[FakeShamus]

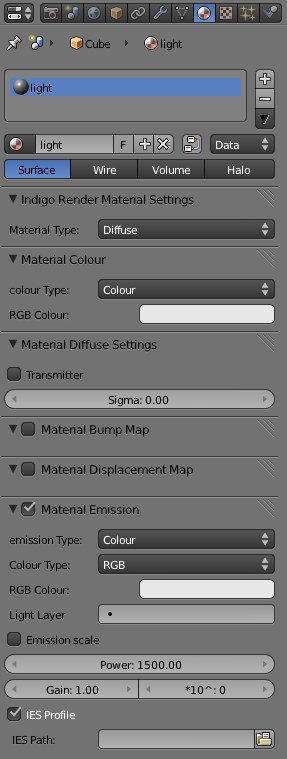

here's what it should look like in your materials tab (see the IES checkbox at the bottom)
