Apple Brushed Aluminium?

General discussion about Indigo Materials - material requests, material developement, feedback, etc..
Buggie
Posts: 3
Joined: Thu Nov 08, 2012 10:35 pm

Apple Brushed Aluminium?

Post by Buggie » Thu Nov 08, 2012 10:38 pm

Does anyone have a material that is like the brushed aluminium Apple use on their products?

I've looked in the material database and there isn't one that is right. I tried to edit the Brushed Metal texture: http://www.indigorenderer.com/materials/materials/212

However it is too reflective and the colour/texture isn't quite right. I'm a bit of a novice at the though.


User avatar
galinette
1st Place Winner
Posts: 923
Joined: Sat Jan 09, 2010 1:39 am
Location: Nantes, France
Contact:

Re: Apple Brushed Aluminium?

Post by galinette » Thu Nov 08, 2012 11:48 pm

What you show on the picture is not really brushed aluminum but rather rough anodized aluminum.

Just start with a phong material, set the nk data to Al, and set the exponent to a very low value such as 1. That should be closer already.

Etienne
Eclat-Digital Research
http://www.eclat-digital.com

User avatar
Headroom
Indigo 100
Posts: 989
Joined: Wed Aug 08, 2007 1:07 pm
Location: Spartanburg, SC, USA

Apple Brushed Aluminium?

Post by Headroom » Fri Nov 09, 2012 2:27 am

The Apple devices usually don't exhibit a "rough anodized" finish. The surface is usually very finely glass bead blasted and then anodized, so the surface should definitely have an exponent larger than 1.
For a close up I'd use a subtle very fine grain bump with NK material and perhaps Exponent 100+
iMac 2.93 GHz Quad Core i7. 12 GB memory
ATI Radeon HD 5750M 1024 MB
OS X 10.10.3 Yosemite
Blender 2.72, Blendigo 3.8.25, Indigo 3.8.26

Trippy Lighting LLC - Colorful LED lighting systems
High Power RGB LED driver - Blog

Buggie
Posts: 3
Joined: Thu Nov 08, 2012 10:35 pm

Re: Apple Brushed Aluminium?

Post by Buggie » Fri Nov 09, 2012 2:29 am

galinette wrote:What you show on the picture is not really brushed aluminum but rather rough anodized aluminum.

Just start with a phong material, set the nk data to Al, and set the exponent to a very low value such as 1. That should be closer already.

Etienne
Thanks, thats giving the texture however I can't for the life of me get the colour to change. Its just white no matter what

Buggie
Posts: 3
Joined: Thu Nov 08, 2012 10:35 pm

Re: Apple Brushed Aluminium?

Post by Buggie » Fri Nov 09, 2012 2:32 am

Thanks, It seems to have worked :)

How do I get the colour to change though, its always white.
I've tried settings an image colour and via the palette which doesn't seem to work

User avatar
galinette
1st Place Winner
Posts: 923
Joined: Sat Jan 09, 2010 1:39 am
Location: Nantes, France
Contact:

Re: Apple Brushed Aluminium?

Post by galinette » Fri Nov 09, 2012 3:36 am

Buggie wrote:Thanks, It seems to have worked :)

How do I get the colour to change though, its always white.
I've tried settings an image colour and via the palette which doesn't seem to work
You can unset the nk data and set the "specular color" instead

Etienne
Eclat-Digital Research
http://www.eclat-digital.com

User avatar
galinette
1st Place Winner
Posts: 923
Joined: Sat Jan 09, 2010 1:39 am
Location: Nantes, France
Contact:

Re: Apple Brushed Aluminium?

Post by galinette » Fri Nov 09, 2012 3:38 am

Headroom wrote:The Apple devices usually don't exhibit a "rough anodized" finish. The surface is usually very finely glass bead blasted and then anodized, so the surface should definitely have an exponent larger than 1.
For a close up I'd use a subtle very fine grain bump with NK material and perhaps Exponent 100+
The posted pictures looks rough, my ipod shuffle too.
Eclat-Digital Research
http://www.eclat-digital.com

User avatar
PureSpider
Posts: 1459
Joined: Tue Apr 08, 2008 9:37 am
Location: Karlsruhe, BW, Germany
Contact:

Re: Apple Brushed Aluminium?

Post by PureSpider » Fri Nov 09, 2012 3:44 am

So does my iPod nano 4G :wink:

User avatar
galinette
1st Place Winner
Posts: 923
Joined: Sat Jan 09, 2010 1:39 am
Location: Nantes, France
Contact:

Re: Apple Brushed Aluminium?

Post by galinette » Fri Nov 09, 2012 3:49 am

PureSpider wrote:So does my iPod nano 4G :wink:
So did mine, left in a rental car in germany :(
One of the best ipods ever, with camera and video playing support :cry:
Eclat-Digital Research
http://www.eclat-digital.com

FoXar
Posts: 139
Joined: Wed Feb 23, 2011 9:57 pm

Re: Apple Brushed Aluminium?

Post by FoXar » Fri Nov 09, 2012 5:01 am

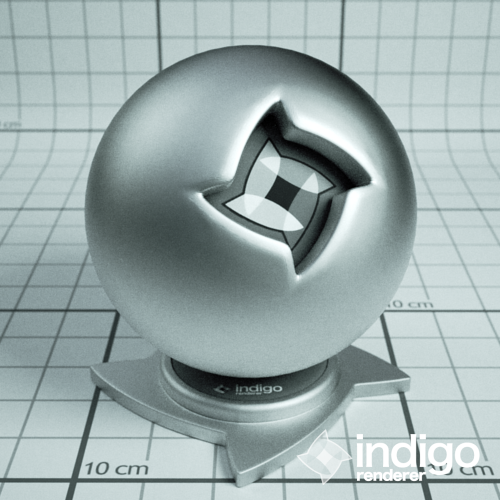

I once made such a material, if I remember right the setup was as following:

Material type: Metal
Specular: light grey color, about 35-40 percent of grey
Exponent: somewhere between 10 and 20 if I'm correct, could be slightly more, but definately not over the 100

I'll see if I can find the renders I made and the corresponding material when I get back home.
Cheers,
Roo Evans

User avatar
galinette
1st Place Winner
Posts: 923
Joined: Sat Jan 09, 2010 1:39 am
Location: Nantes, France
Contact:

Re: Apple Brushed Aluminium?

Post by galinette » Fri Nov 09, 2012 5:13 am

FoXar wrote:Material type: Metal
Do you mean phong?
Eclat-Digital Research
http://www.eclat-digital.com

FoXar
Posts: 139
Joined: Wed Feb 23, 2011 9:57 pm

Re: Apple Brushed Aluminium?

Post by FoXar » Fri Nov 09, 2012 6:53 am

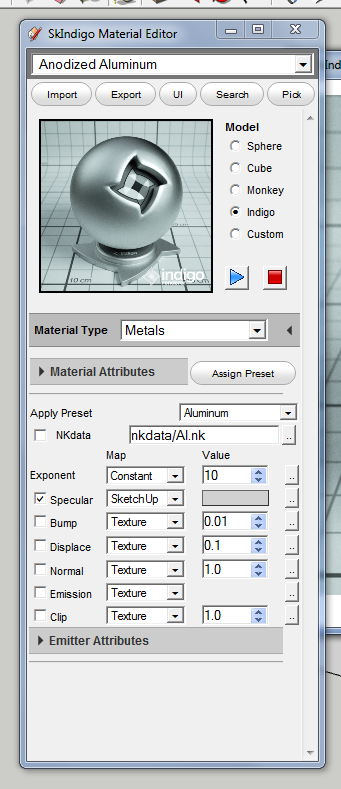

Nope I haven't, here's the setup ;)
Attachments
Anodized Aluminum.png
Cheers,
Roo Evans

User avatar
pixie
Indigo 100
Posts: 2215
Joined: Sat Dec 29, 2007 4:54 am
Location: Away from paradise
Contact:

Re: Apple Brushed Aluminium?

Post by pixie » Fri Nov 09, 2012 7:07 am

FoXar wrote:Nope I haven't, here's the setup ;)
Anyhow it's phong ;)

FoXar
Posts: 139
Joined: Wed Feb 23, 2011 9:57 pm

Re: Apple Brushed Aluminium?

Post by FoXar » Fri Nov 09, 2012 7:54 am

pixie wrote:
FoXar wrote:Nope I haven't, here's the setup ;)
Anyhow it's phong ;)
Oooh okay, didn't knew that! :mrgreen:
Thanks!
Cheers,
Roo Evans

User avatar
JonasWe
Posts: 4
Joined: Thu Dec 13, 2012 4:26 pm

Re: Apple Brushed Aluminium?

Post by JonasWe » Fri Dec 14, 2012 7:55 am

That's what I was searching for!
Can you upload this material to the Library?
