problem with canera and material

Post by filippo » Fri Apr 13, 2007 9:56 pm

I don't do some image with the camera in the correct position...

as I must setting the camera to have all scene to focus?
I try with autofocus, but the image it's out of focus!!!
setting to camera?

I had already signalled the problem: how I make a material to ceramic of the bathtub?
thanks
Attachments
vista max.jpg

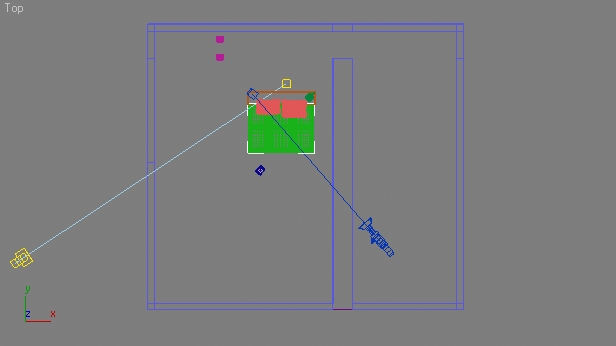

max view
vista max.jpg (63.67 KiB) Viewed 1700 times

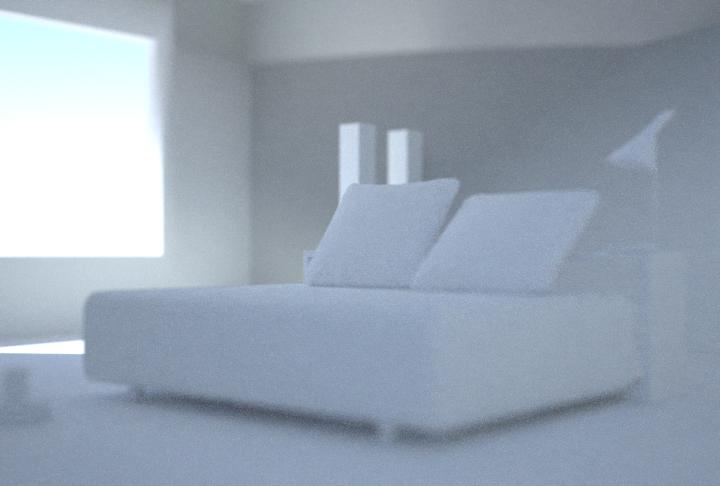

render view
2x Xeon quad core ghz 2.66(8 core)+4g ram+quadro fx
2 x Xeon Quad 5540 (16 core)+16GB ram+ Nvidia GTX 295 1800mb

User avatar
suvakas
3rd Place Winner
Posts: 2613
Joined: Mon Sep 04, 2006 11:08 pm
Location: Estonia
Contact:

Post by suvakas » Fri Apr 13, 2007 10:08 pm

Check the scale of your scene. Seems to be too small.

User avatar
manitwo
Posts: 1029
Joined: Wed Jul 05, 2006 4:50 am
Location: Tirol - Austria

Post by manitwo » Fri Apr 13, 2007 10:09 pm

First: if you dont want this to like like a 1cm big bed you'll have to lower the aperture-radius. (or higher the scene-scale)
Second: autofocus messures the distance from the cam to the object in the middle of the image (which is the pillow). Set the focus point/distance manually (dont know how this is handled in maxigo tho :) )
Third: for ceramic i would try a light-grey phong with an ior of ~1.5

hope this helps :)

User avatar
filippo
Posts: 658
Joined: Sat Aug 05, 2006 8:46 pm
Location: italia(senigallia-an)
Contact:

Post by filippo » Fri Apr 13, 2007 10:16 pm

thanks for the suggestions, I immediately try and I post the result.
filippo
2x Xeon quad core ghz 2.66(8 core)+4g ram+quadro fx
2 x Xeon Quad 5540 (16 core)+16GB ram+ Nvidia GTX 295 1800mb
