RhIndigo - Indigo for Rhinoceros 5.0 thread

Post by StompinTom » Tue Jul 15, 2014 7:21 am

Hello,

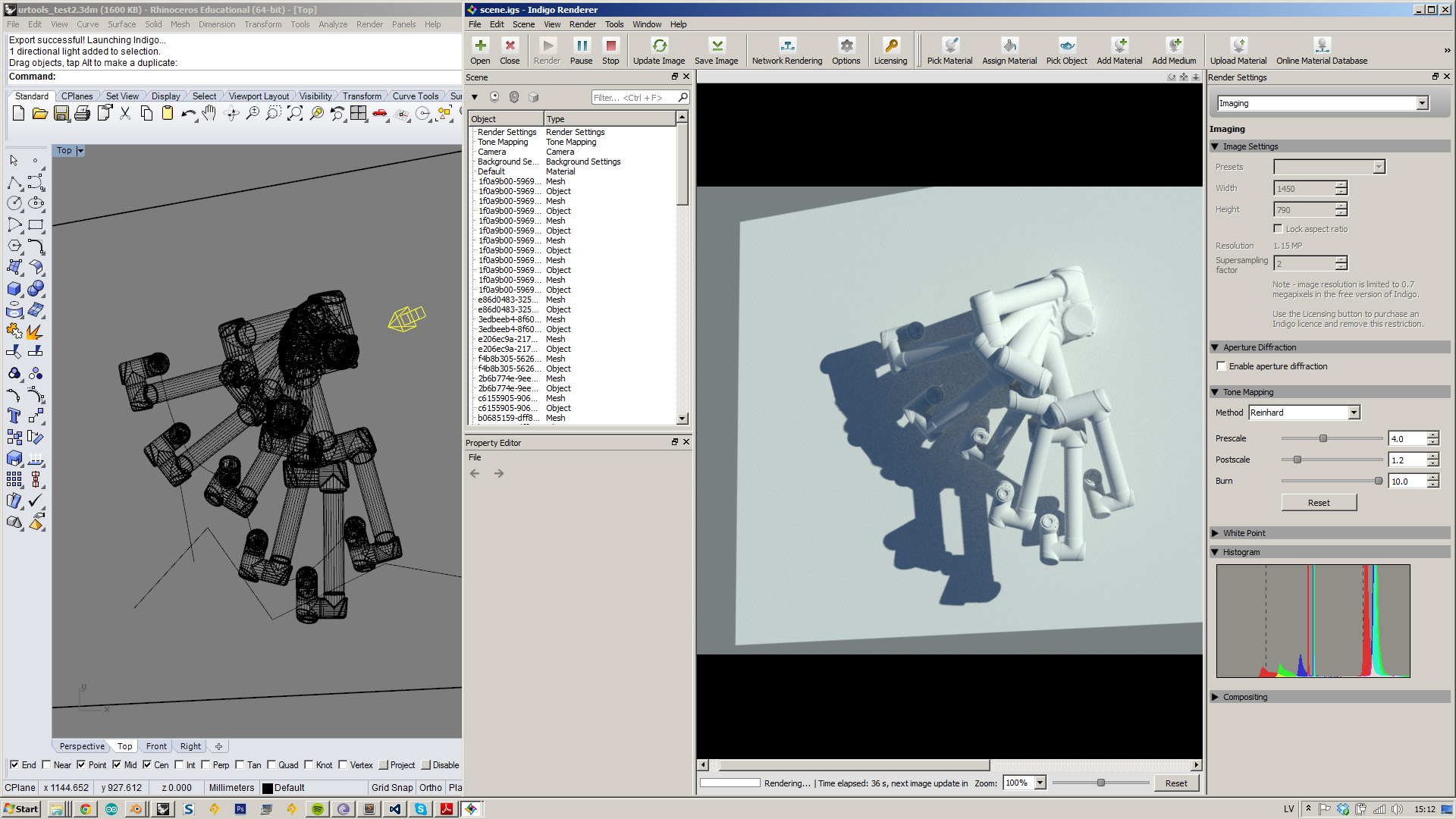

Since it's going reasonably well - at least for a noob attempt - thought I'd post about Rhino / Indigo progress here. It's written in C# using the RhinoCommon render API, so it basically appears as another rendering engine in the Render menu. So far it's very bare-bones: basic geometry export, no materials (default white material, basic sun/sky and uniform backgrounds, and uses the active viewport for rendering (including ortho views). Supports meshes and NURBS surfaces (trimmed surfaces, polysurfaces, primitives, extrusions, etc.).

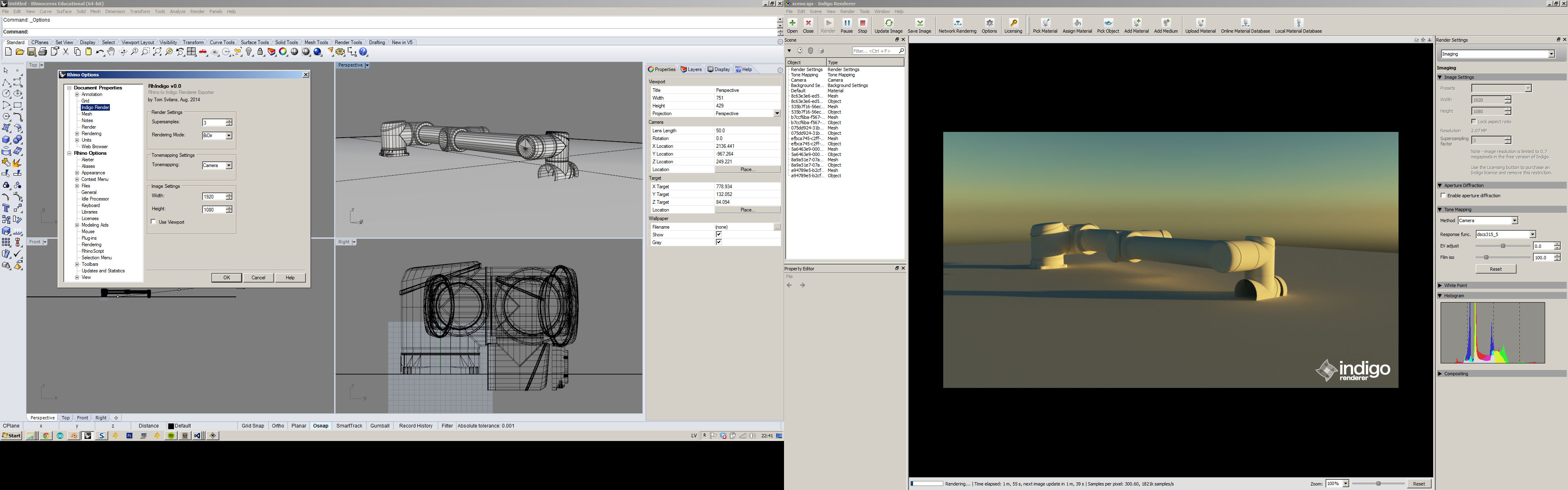

Basic materials + Sun / Sky using Directional Light
To do (to begin with):
- expose render settings
- expose camera / tonemapping settings
- implement material editor
- tighten everything up, re-think about the overall structure as it's a bit hackish atm
- eventually take a look at Rhino C++ API and hopefully see how to integrate Indigo into the viewports / render frame-buffer

It's not worth posting it at the moment, since it's quite scrappy, but I will try to get a version up sometime in the near future.

Suggestions for a better name, wishlist, better workflows, etc. are welcome, though don't expect miracles. Also, tips and hints about C#, Rhino, or programming in general would be much appreciated.

T
Last edited by StompinTom on Fri Oct 12, 2018 11:16 pm, edited 1 time in total.

User avatar
zeitmeister
2nd Place 100
Posts: 1996
Joined: Tue Apr 22, 2008 4:11 am
Location: Limburg/Lahn, Germany
Contact:

Re: RhIndigo - Indigo for Rhinoceros 5.0 thread

Post by zeitmeister » Tue Jul 15, 2014 9:40 am

Very cool! Rhino Users and coders, Support this guy!!


Grüsse, zeiti
Cheers, David



DAVIDGUDELIUS // 3D.PORTFOLIO
·
Indigo 4.2.23 | Indigo for C4D 4.2.22 | C4D R14.042 | Mac OS X 10.13.6 | Windows 10 Professional x64

sunlooksgreen
Posts: 25
Joined: Mon Jul 07, 2014 8:56 pm

Re: RhIndigo - Indigo for Rhinoceros 5.0 thread

Post by sunlooksgreen » Tue Jul 15, 2014 8:39 pm

hi there! this is great news!
when you talk about integrate Indigo into the viewports would that mean we could navigate somehow real-time into the rendered model? and see changes to the geometry immediately appear on the render?

regards

tom

User avatar
zeitmeister
2nd Place 100
Posts: 1996
Joined: Tue Apr 22, 2008 4:11 am
Location: Limburg/Lahn, Germany
Contact:

Re: RhIndigo - Indigo for Rhinoceros 5.0 thread

Post by zeitmeister » Tue Jul 15, 2014 10:37 pm

I think so; sort of.
But maybe he meant for now direct viewport rendering?


Grüsse, zeiti
Cheers, David



DAVIDGUDELIUS // 3D.PORTFOLIO
·
Indigo 4.2.23 | Indigo for C4D 4.2.22 | C4D R14.042 | Mac OS X 10.13.6 | Windows 10 Professional x64

StompinTom
Indigo 100
Posts: 1819
Joined: Mon Sep 04, 2006 3:33 pm

Re: RhIndigo - Indigo for Rhinoceros 5.0 thread

Post by StompinTom » Wed Jul 16, 2014 1:21 am

zeitmeister wrote:I think so; sort of.
But maybe he meant for now direct viewport rendering?


Grüsse, zeiti
Both would be great, but for now I've got enough on my hands to get the basics up and running :) I got some examples / bit of direction about custom materials in Rhino, so I will try to take a stab at that soon.

User avatar
zeitmeister
2nd Place 100
Posts: 1996
Joined: Tue Apr 22, 2008 4:11 am
Location: Limburg/Lahn, Germany
Contact:

Re: RhIndigo - Indigo for Rhinoceros 5.0 thread

Post by zeitmeister » Thu Jul 17, 2014 3:59 am

Sure... Glad that someone writes something! :-)


Grüsse, zeiti
Cheers, David



DAVIDGUDELIUS // 3D.PORTFOLIO
·
Indigo 4.2.23 | Indigo for C4D 4.2.22 | C4D R14.042 | Mac OS X 10.13.6 | Windows 10 Professional x64

StompinTom
Indigo 100
Posts: 1819
Joined: Mon Sep 04, 2006 3:33 pm

Re: RhIndigo - Indigo for Rhinoceros 5.0 thread

Post by StompinTom » Tue Aug 26, 2014 9:52 am

Had a bit of time this weekend to push this a bit further...

Render settings and such presumably save with the 3DM file now, though testing is needed. Very basic control of resolution, tonemapping, render mode, etc.

No materials yet, been going through some documentation on adding custom materials and still getting my head around it.
If you don't add a directional light, it will render with basic white environment. So far no exposure control is in yet.

If your surfaces are coming out chunky, go to Mesh->Render Mesh Properties... and adjust the meshing parameters there.

Anyway, here it is for those who want to have a go. Be nice, don't expect wonders, but let me know what works and what doesn't.

To install: unzip, then either double-click on the .rhp file and Rhino will automatically install it, or boot Rhino, go to Options...->Plug-ins, click Install and find the .rhp file. It's an x64 build, so if it doesn't work for you I can do a x86 one as well.
Attachments
RhIndigo.zip
64-bit build
(14.81 KiB) Downloaded 353 times

User avatar
CTZn
Posts: 7240
Joined: Thu Nov 16, 2006 4:34 pm
Location: Paris, France

Re: RhIndigo - Indigo for Rhinoceros 5.0 thread

Post by CTZn » Wed Aug 27, 2014 10:02 am

cool Tom, keep it up ! Are you being in touch with the Rhino community as well to spread the word aroundv?
obsolete asset

StompinTom
Indigo 100
Posts: 1819
Joined: Mon Sep 04, 2006 3:33 pm

Re: RhIndigo - Indigo for Rhinoceros 5.0 thread

Post by StompinTom » Wed Aug 27, 2014 10:59 am

CTZn wrote:cool Tom, keep it up ! Are you being in touch with the Rhino community as well to spread the word aroundv?
Nah, still needs a bit of work before that :wink:

StompinTom
Indigo 100
Posts: 1819
Joined: Mon Sep 04, 2006 3:33 pm

Re: RhIndigo - Indigo for Rhinoceros 5.0 thread

Post by StompinTom » Wed Sep 03, 2014 8:46 pm

Got basic material export working. Indigo diffuse and phong materials are now options in the material editor.

sunlooksgreen
Posts: 25
Joined: Mon Jul 07, 2014 8:56 pm

Re: RhIndigo - Indigo for Rhinoceros 5.0 thread

Post by sunlooksgreen » Sun Sep 07, 2014 11:38 pm

that's great! can't wait to have a usuable bridge so I can start using indigo..

CHF
Posts: 14
Joined: Tue Jun 24, 2008 9:37 pm

Re: RhIndigo - Indigo for Rhinoceros 5.0 thread

Post by CHF » Thu Sep 11, 2014 1:23 am

First of all, thanks for writing an exporter. Really appreciated.
I downloaded and installed the plugin. It just starts out fine, but indigo throws the following error:
Scene parsing error: Failed to parse Vec3 from '19,5111 -29,1895 19,4016'. (In element 'scene / camera'):
<camera>
<pos>19,5111 -29,1895 19,4016</pos>
<up>-0,2691 0,4051 0,8738</up>
<... (In element 'scene / camera'):
<camera>
<pos>19,5111 -29,1895 19,4016</pos>
<up>-0,2691 0,4051 0,8738</up>
<...
No Metadata.
Simple scene, only a cube.
Any idea?
Best H

edit: it exports ',' instead of '.' for vectors

User avatar
OnoSendai
Developer
Posts: 6174
Joined: Sat May 20, 2006 6:16 pm
Location: Newcastle upon Tyne, UK
Contact:

Re: RhIndigo - Indigo for Rhinoceros 5.0 thread

Post by OnoSendai » Thu Sep 11, 2014 1:38 am

Indigo only supports '.' as the decimal separator.

StompinTom
Indigo 100
Posts: 1819
Joined: Mon Sep 04, 2006 3:33 pm

Re: RhIndigo - Indigo for Rhinoceros 5.0 thread

Post by StompinTom » Thu Sep 11, 2014 7:37 am

Must be a locality / language thing... It exports '.' for me. Will have a look, maybe there's an easy way to force using '.'.

Haven't had much free time at all lately, but hopefully will upload some material stuff and this fix at some point soon.

CHF
Posts: 14
Joined: Tue Jun 24, 2008 9:37 pm

Re: RhIndigo - Indigo for Rhinoceros 5.0 thread

Post by CHF » Thu Sep 11, 2014 8:20 pm

Probably, while on a german win8.1 64, Rhino is running in English language.
Best H
