Many new light materials

Post by galinette » Fri Jan 29, 2010 1:10 pm

http://www.indigorenderer.com/materials/categories/15

And more to come... What would you like in priority?

Etienne
Eclat-Digital Research
http://www.eclat-digital.com

Soup
Posts: 444
Joined: Sat Jun 13, 2009 1:20 am

Re: Many new light materials

Post by Soup » Fri Jan 29, 2010 1:20 pm

Oh wow those are really nice! I particularly love the Blue LED one.
If you could make some basic every-day type of lights that would be great too. Just your average 25/50/75/100Watt house bulbs would be great for the less experienced users. Name them something basic too ;)

Excuse my ignorance, but shouldn't the candle flame be orange? Or is that tonemapping?

User avatar
dougal2
Developer
Posts: 2532
Joined: Wed Nov 15, 2006 8:17 am
Location: South London

Re: Many new light materials

Post by dougal2 » Fri Jan 29, 2010 1:52 pm

The spectra based on the data from the amici spectroscope are already included as presets in Blendigo 2.3.1 :D

Soup
Posts: 444
Joined: Sat Jun 13, 2009 1:20 am

Re: Many new light materials

Post by Soup » Fri Jan 29, 2010 4:00 pm

Could we get the presets from sketchup and blendigo on the material database? paste em up!

User avatar
galinette
1st Place Winner
Posts: 923
Joined: Sat Jan 09, 2010 1:39 am
Location: Nantes, France
Contact:

Re: Many new light materials

Post by galinette » Fri Jan 29, 2010 7:25 pm

That's what I'm doing! Most of them come from the Amici page.

By the way, how did you do the interpolation from non-linear scale to linear? If not done properly you will mess up all peak ratios (hence precise color) in spectra with sharp peaks.

Etienne
Eclat-Digital Research
http://www.eclat-digital.com

User avatar
galinette
1st Place Winner
Posts: 923
Joined: Sat Jan 09, 2010 1:39 am
Location: Nantes, France
Contact:

Re: Many new light materials

Post by galinette » Fri Jan 29, 2010 7:30 pm

Yes, the candle looks quite too neutral, I checked multiple times and did no mistakes. That comes from the source spectrum. Next time I have a candle and a spectrometer I redo it!

About the "wattage" request, it's not really possible to do it in Indigo I think, since in the .igs the luminous flux is defined in the model, not the material (am I right? this is what I've understood from the technical doc but I know it's quite outdated)

Etienne
Eclat-Digital Research
http://www.eclat-digital.com

User avatar
dougal2
Developer
Posts: 2532
Joined: Wed Nov 15, 2006 8:17 am
Location: South London

Re: Many new light materials

Post by dougal2 » Sat Jan 30, 2010 12:27 am

galinette wrote:By the way, how did you do the interpolation from non-linear scale to linear?
I believe it was already done by the developers of LuxRender, who I took the data from.
All I did since then was to linear-interpolate to a different wavelength range.

However, I would like to cross-check the data I have against yours, just to be sure.

User avatar
galinette
1st Place Winner
Posts: 923
Joined: Sat Jan 09, 2010 1:39 am
Location: Nantes, France
Contact:

Re: Many new light materials

Post by galinette » Sat Jan 30, 2010 3:44 am

Luxrender is able to use arbitrary wavelength scale (the spectrum is a list of wavelength/intensity pairs) so they just calculated one pair per spectrum pixel. It ends up with a step much finer in the blue range (~0.15nm) than in the red range (~5nm).

Danger of simple linear interpolation is that you can dramatically change the peak areas for peaky spectras, which then ends up in a sensible change in color.

Etienne
Eclat-Digital Research
http://www.eclat-digital.com

User avatar
fenerolina
Posts: 141
Joined: Sun Mar 15, 2009 12:27 pm
Location: Pyrenees

Re: Many new light materials

Post by fenerolina » Sat Jan 30, 2010 7:58 am

Hi Galinette.
The wattage should be set in material editor/emitter attributes/power. at least in Skindigo.
galinette wrote:What would you like in priority?
More led lights would be great! Thank you and thanks for the black light answer..

neo0.
Posts: 1784
Joined: Thu Feb 28, 2008 7:11 am
Location: the US of A

Re: Many new light materials

Post by neo0. » Sat Jan 30, 2010 7:21 pm

I love you. :shock:

User avatar
galinette
1st Place Winner
Posts: 923
Joined: Sat Jan 09, 2010 1:39 am
Location: Nantes, France
Contact:

Re: Many new light materials

Post by galinette » Sun Jan 31, 2010 1:53 am

Ferolina : Yes, in skindigo, the wattage is set in the material properties. But when you export to igs, it appears that the wattage is set in the <model> element, and not in <material>. In that case, it's not possible to export a igm material with included power.

Any help from the igs xml format appreciated! (Please, update the reference doc!)

Etienne
Eclat-Digital Research
http://www.eclat-digital.com

User avatar
dougal2
Developer
Posts: 2532
Joined: Wed Nov 15, 2006 8:17 am
Location: South London

Re: Many new light materials

Post by dougal2 » Sun Jan 31, 2010 2:16 am

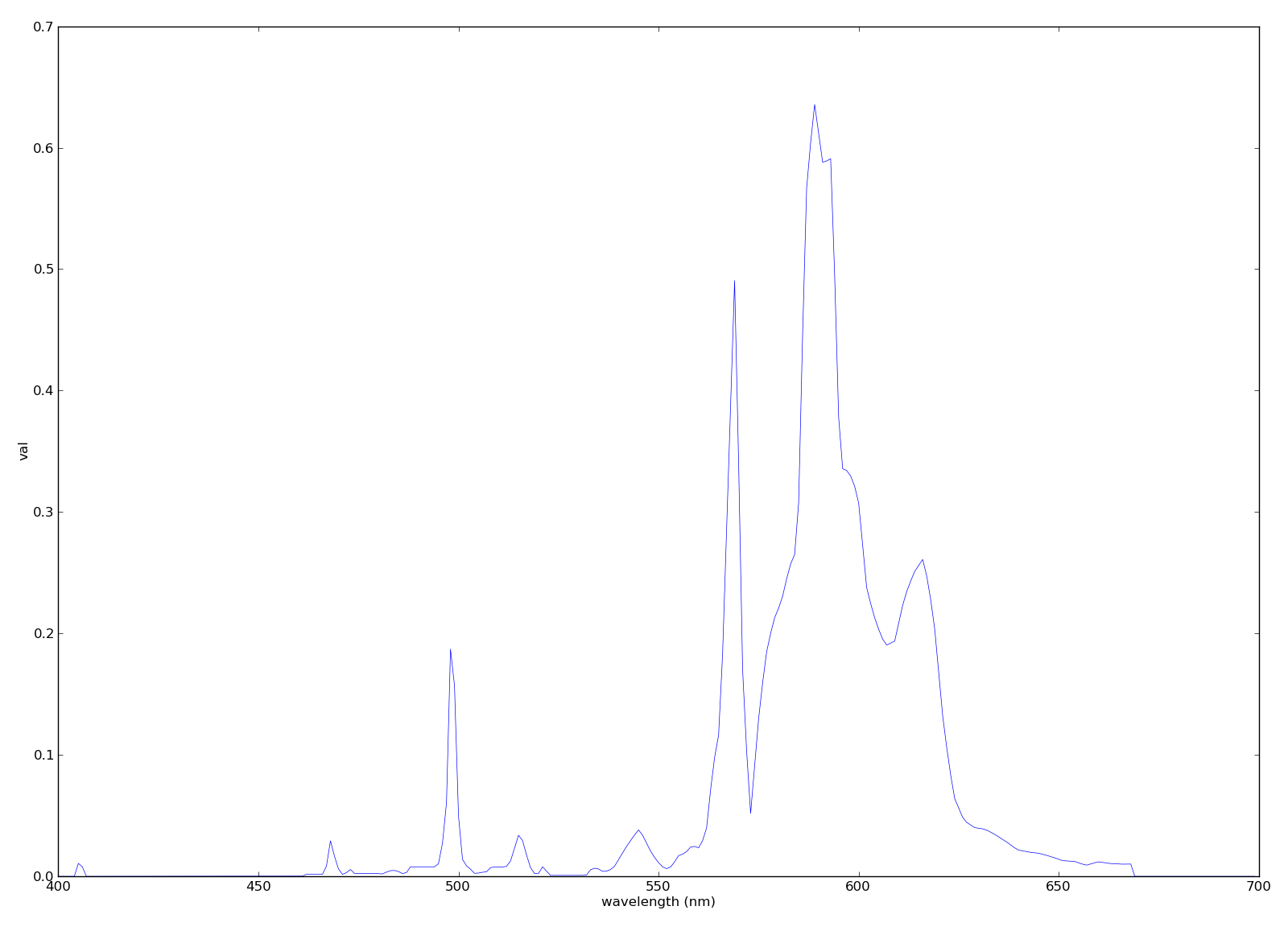

Here are plots of two of the spectra that I have.
Attachments
RedLaser
Low Pressure Sodium (LPS)

User avatar
dougal2
Developer
Posts: 2532
Joined: Wed Nov 15, 2006 8:17 am
Location: South London

Re: Many new light materials

Post by dougal2 » Sun Jan 31, 2010 2:20 am

Here's one you can directly compare with your own data:

Mercury Lamp - Osram HQA 80W (HPM2)
Attachments

User avatar
galinette
1st Place Winner
Posts: 923
Joined: Sat Jan 09, 2010 1:39 am
Location: Nantes, France
Contact:

Re: Many new light materials

Post by galinette » Sun Jan 31, 2010 2:39 am

Hard to see on a chart.

Here is a close up on the leftmost peaks of the HQA80W.

Interpolation is not linear or cubic interpolation, but equal to the local average of the source spectrum, so that we keep the same peak area (and hence the area ratios of the peaks, which fix the color).

Etienne
Attachments
Eclat-Digital Research
http://www.eclat-digital.com

User avatar
fenerolina
Posts: 141
Joined: Sun Mar 15, 2009 12:27 pm
Location: Pyrenees

Re: Many new light materials

Post by fenerolina » Sun Jan 31, 2010 5:40 am

galinette wrote:Yes, in skindigo, the wattage is set in the material properties. But when you export to igs, it appears that the wattage is set in the <model> element, and not in <material>. In that case, it's not possible to export a igm material with included power.
Oh, I get it now. Thanks for your clear answers Galinette!
